Recuperative Environmental Conditioning Unit

A method and apparatus for removing moisture from within an electronics enclosure is provided. In particular, dehumidification is accomplished by removing air from the enclosure, cooling the air thereby causing condensation of water vapor from the air, then heating the dehumidified air and returning the heated and dehumidified air to the enclosure. A single heat pump provides cooling and heating functions, effectively recouping heat extracted from the air to be cooled, and transferring the extracted heat to the air prior to its return to the enclosure. In this manner, electronics within the enclosure may be operated at temperatures below the dew point of ambient air surrounding the enclosure, without requiring a thermally insulated enclosure. Devices are provided to collect and purge condensate from the system, either in a continuous or periodic manner.; Embodiments employing conventional vapor compression cycle heat pumps and thermoelectric heat pumps are described. A defrost cycle is provided to eliminate frost that may accumulate on the heat exchanger associated with the heat pump normally cold element. Defrost is accomplished by reversing heat pump polarity, heating the normally cold element. Control mechanisms and logic are provided to automate system operation. In preferred embodiments, dehumidification and defrost modes are activated by a controller monitoring the dew point within the enclosure, and the air pressure at the normally cold element. Dehumidification is performed intermittently, when the enclosure dew point exceeds a set point. Substantially sealing the enclosure against ingress of ambient air reduces the system's operational duty cycle.

Description

BACKGROUND

1. Field of the Invention

The present invention relates, in general, to the removal of moisture from within an electronics enclosure, and in particular to a method and apparatus employing a single heat pump to dehumidify and thermally condition the air within an electronics enclosure.

2. Description of Related Art

Electronic devices, which are cooled to below ambient temperatures and which operate in an environment in which water vapor is present, are subject to condensation problems which may cause corrosion and short circuits. It is therefore desirable to remove water vapor from the environment in which electronic devices operate. While corrosion and short circuiting may be caused by water vapor within the environment surrounding the electronic devices regardless of the device or environment temperatures, the problems intensify for devices operating at lower temperatures, as water vapor may begin to condense on the cooled surfaces of the electronic devices.

As is known, CMOS circuit performance may be improved by reducing the temperatures at which the circuits operate, i.e. the chip junction temperature. As the chip junction temperature decreases, however, the outer surface temperature of the chip package also decreases. The package outer surface includes the electrical interconnections between the package and the next level of assembly, such as a board: the temperature of these interconnections also decreases as chip junction temperature decreases. Heat transfer through these electrical interconnections, therefore, decreases board temperatures. As chip junction temperatures decrease further, eventually the temperature of one or more portions of these exposed surfaces (package outer surface, interconnections, and board) falls below the dew point temperature of the ambient atmosphere surrounding the components. At this point, condensation forms on the module and board surfaces, including electrical interconnections, unless preventive actions are taken. Therefore, dehumidification is highly desirable for environments containing electronic devices operating at temperatures below ambient dew point.

Two basic approaches have been taken to eliminate condensation on cold module surfaces: maintain the external module surfaces at temperatures above room ambient dew point, or condition the atmosphere within the enclosure such that its dew point is lower than the electronic components' external surface temperatures.

The first method, maintaining module surface temperatures above dew point, may be accomplished by providing sufficient insulation around each module, such that the external surface temperature of the insulation remains above room ambient dew point. This approach is discussed in a United States patent application entitled "Inflatable Sealing System for Low Temperature Electronic Module," Ellsworth et al., Ser. No. 09/360,727, having a filing date of Jul. 27, 1999, assigned to the same assignee as the present application and hereby incorporated herein by reference in its entirety, and which is not admitted to be prior art with respect to the present invention by its mention in this Background Section. As the chip temperature decreases, however, more insulation is required around each module to maintain external surface temperatures above the dew point. At some point, as chip temperatures are decreased far below dew point, it may also be necessary to provide auxiliary heaters at the external surfaces of the insulation in order to maintain the module insulation surface temperature above the dew point.

The second method, lowering the dew point of air within the enclosure below the external surface temperature of the cooled modules, prevents condensation without requiring insulation around the modules. This approach is discussed in a United States patent application entitled "Sub-Dew Point Cooling of Electronic Systems," Chu et al., Ser. No. 09/281,135, having a filing date of Mar. 29, 1999, assigned to the same assignee as the present application and hereby incorporated herein by reference in its entirety, and which is not admitted to be prior art with respect to the present invention by its mention in this Background Section. In order to lower the dew point temperature of the ambient atmosphere within the enclosure, some method should be employed to remove moisture from the atmosphere within the enclosure, preferably providing the ability to further remove the moisture from within the enclosure itself. Further, in order to decrease the burden on the moisture removal device, it may be desirable in some applications to provide an enclosure that is at least somewhat sealed against entry of ambient air. While sealing the enclosure may not be required in all applications, a well sealed enclosure requires less frequent (i.e. lower duty cycle) operation of the moisture removal device than would be required in a poorly sealed enclosure.

Depending upon the specific application and the moisture removal method used, the enclosure air temperature may be lowered as a byproduct of the moisture removal process. The temperature reduction may be caused by reduced heat transfer between enclosure air and ambient air, as a result of partially sealing the enclosure against ingress of ambient air. Heat transfer from ambient air to enclosure air tends to mitigate the effect of heat transfer from the enclosure air to the cooled surfaces within the enclosure. Alternatively, the temperature reduction may be caused by the use of a cold heat exchanger to dehumidify the enclosure air. For some applications, the presence of other mitigating factors may maintain the enclosure air temperature within acceptable limits. For other applications, however, continued system operation may result in enclosure air temperatures below room ambient dew point, eventually causing the temperature of the enclosure outer surface to drop below room ambient dew point, resulting in the formation of condensation on the enclosure outer surface.

In such applications, two methods have been employed in the art to prevent condensation from forming on the external surfaces of the enclosure. One method involves insulating the enclosure, such that the external surface remains above ambient dew point. A second method involves the use of an auxiliary heater to heat the enclosure air.

For the foregoing reasons, there is a need for methods and devices capable of preventing the formation of condensation on the cooled surfaces of electronic components, without insulating the electronic components or the enclosure. There is, therefore, a need for methods and devices capable of removing water vapor from the atmosphere within an electronics enclosure and further from the enclosure itself, without lowering the temperature of the atmosphere within the enclosure.

SUMMARY OF THE INVENTION

The present invention is directed to a method and apparatus for conditioning the air within an electronics enclosure, without external condensation, and without the need to insulate the enclosure or to provide an auxiliary heat source. Toward this end, a recuperative environmental conditioning unit is proposed which dehumidifies the air within the enclosure by causing the air to pass over a heat exchanger in thermal contact with the cold element of a heat pump, and reheats the air prior to returning it to the enclosure by causing the air to pass over a heat exchanger in thermal contact with the hot element of the same heat pump. In this way, moisture is removed from the air within the enclosure, eliminating the need for insulation around the electronic components. Since the dehumidified air is warmed prior to returning to the enclosure, the enclosure temperature remains above the room ambient dew point temperature, eliminating the need to insulate the enclosure. Further, since the air is heated by the hot element of the heat pump, no auxiliary heat sources are required. By using the same heat pump to cool and heat the enclosure air, the heat extracted during cooling is recouped. Finally, the conduit forms a sump or collection area, from which the condensate is purgeable to the external environment.

Related: Solar Powered Water From Air

In one embodiment of the present invention, a closed loop air conduit is formed beneath the electronics enclosure. A heat pump is situated beneath the enclosure, each element of the heat pump having a high thermal conductivity path to the air contained within a different portion of the conduit. An air moving device causes air to circulate from the enclosure into an inlet port of the conduit, through the inlet side of the conduit, through a sump or condensate collection section of the conduit, then through the outlet side and outlet port of the conduit, and finally from the outlet port back to the enclosure. Within the inlet side, the air flows through a heat exchanger in thermal contact with the normally cold element of the heat pump, cooling the air and causing moisture to condense on the normally cold heat exchanger. Within the outlet side, the air flows through a heat exchanger in thermal contact with the normally hot element of the heat pump, heating the air prior to its return to the enclosure. As condensate collects on the normally cold heat exchanger, it falls from the heat exchanger and is collected in the sump portion of the conduit. A mechanism, such as a valve or a wick, which allows periodic removal of the condensate is disposed near the bottom of the sump. A mechanism such as a baffle is provided within the enclosure to cause air entering the enclosure from the conduit outlet port to circulate around the enclosure before reentering the conduit inlet port.

In another embodiment of the present invention, the recuperative environmental conditioning unit is disposed entirely within the enclosure: only the mechanism which removes condensate from the sump area, or some portion of this mechanism, extends outside of the enclosure.

In another embodiment of the present invention, the heat pump device is a vapor compression cycle heat pump. In a preferred embodiment, the heat pump is a thermoelectric device.

In other embodiments of the present invention, air circulation within the enclosure is accomplished by extending the conduit inlet port or the conduit outlet port, or both, so as to cause air to return to the enclosure some distance away from the location where the conduit removes air from the enclosure. In this way, air entering the enclosure from the extended outlet port circulates through the enclosure prior to entering the conduit inlet port, thus eliminating the need for an airflow baffle.

In preferred embodiments of the present invention, control mechanisms are provided to handle certain functions. In one aspect, a humidity or dew point sensor measures the humidity within the enclosure, and a controller monitoring the humidity sensor activates the heat pump and air moving device when humidity within the enclosure exceeds a setpoint. The controller continues to monitor the sensor, deactivating the heat pump and air moving device when the dew point is at or below a setpoint. In another aspect, a control mechanism operates the condensate removal valve when the condensate level reaches an upper threshold.

In a preferred embodiment of the present invention, a defrost mode is provided to remove frost from the normally cold heat exchanger. The defrost mode may be initiated and terminated manually; however, in preferred embodiments a controller monitors a sensor to identify a restricted airflow condition at the normally cold heat exchanger, restricted airflow being indicative of frost accumulation on the heat exchanger. Upon detection of such a condition, the controller initiates the defrost mode. During defrost, the controller reverses the direction of heat flow through the heat pump, causing heat to flow from the normally hot element to the normally cold element. At the same time, the controller initiates a change in airflow at the inlet and outlet sides of the conduit. The conduit inlet side, normally in airflow communication with the conduit inlet port, is now sealed off from the inlet port (and therefore from the enclosure) and put in airflow communication with an ambient inlet vent, the ambient inlet vent being in airflow communication with the ambient air surrounding the enclosure. In analogous fashion, the conduit outlet side, normally in airflow communication with the conduit outlet port, is sealed off from the outlet port (and therefore from the enclosure) and is placed in airflow communication with an ambient outlet vent, the ambient outlet vent being in airflow communication with the ambient air surrounding the enclosure. As a result of these changes, air no longer flows to and from the enclosure, the enclosure being sealed off from the inlet and outlet sides of the conduit. During defrost, room ambient air enters through the ambient inlet vent, into the conduit inlet side, where it flows over the normally cold (now hot) heat exchanger, through the sump, over the normally hot (now cold) heat exchanger, and finally through the outlet side and ambient outlet vent, into the ambient environment. The controller terminates the defrost mode upon determining that the restricted airflow condition has been eliminated. The controller then returns the system to its normal operating state: the conduit is sealed off from the ambient, the conduit inlet side is placed in airflow communication with the inlet port, the conduit outlet side is placed in airflow communication with the outlet port, thereby restoring airflow between the enclosure and the conduit, and the heat pump is again reversed such that the heat pump causes heat to flow from the normally cold element to the normally hot element.

In preferred embodiments employing control mechanisms to initiate dehumidification and defrost, contention is managed by prioritizing the defrost process.

It is therefore an object of the present invention to provide a method and apparatus to remove moisture from within an electronics enclosure, without lowering the temperature of the air within the enclosure.

It is a further object of the present invention to accomplish the moisture removal with a single heat pump, heating the dehumidified air prior to returning the air to the enclosure, without the use of an auxiliary heat source.

It is a further object of the present invention to automate the moisture removal process, by monitoring the moisture levels within the enclosure and activating the conditioning unit when the dew point exceeds a threshold.

It is a further object of the present invention to provide an automatic mechanism for removing condensate from the enclosure.

It is a still further object of the present invention to provide an automated defrost cycle, to remove frost from the normally cold heat pump element, venting the resulting vapor to the external environment.

The recitation herein of a list of desirable objects which are met by various embodiments of the present invention is not meant to imply or suggest that any or all of these objects are present as essential features, either individually or collectively, in the most general embodiment of the present invention or in any of its more specific embodiments.

Additional features and advantages are realized through the techniques of the present invention. Other embodiments and aspects of the invention are described in detail herein, and are considered part of the claimed invention.

BRIEF DESCRIPTION OF THE DRAWINGS

The subject matter which is regarded as the invention is particularly pointed out and distinctly claimed in the concluding portion of the specification. The invention, however, both as to organization and method of practice, together with further objects and advantages thereof, may best be understood by reference to the following description taken in connection with the accompanying drawings in which:

FIG. 1A shows a side view of an electronics enclosure with an external recuperative environmental conditioning unit (RECU) according to one embodiment of the present invention;

FIG. 1B shows a side detail view of the RECU of FIG. 1A in normal operation;

FIG. 1C shows a side detail view of the RECU of FIG. 1A, in defrost mode;

FIG. 2A shows a plan view of the thermoelectric heat pump and heat exchangers according to one embodiment of the present invention;

FIG. 2B shows a cutaway view of the thermoelectric device depicted in FIG. 2A, taken along lines B--B;

FIG. 2C shows a cutaway view of the thermoelectric device depicted in FIG. 2A, taken along lines C--C;

FIG. 3A shows a side view of an electronics enclosure with an external RECU, according to an alternative embodiment of the present invention;

FIG. 3B shows a side detail view of the RECU of FIG. 3A in normal operation;

FIG. 3C shows a side detail view of the RECU of FIG. 3A, in defrost mode;

FIG. 3D shows a side detail view of an RECU employing an extended outlet port;

FIG. 4A shows a side view of an electronics enclosure with an internal RECU according to one embodiment of the present invention;

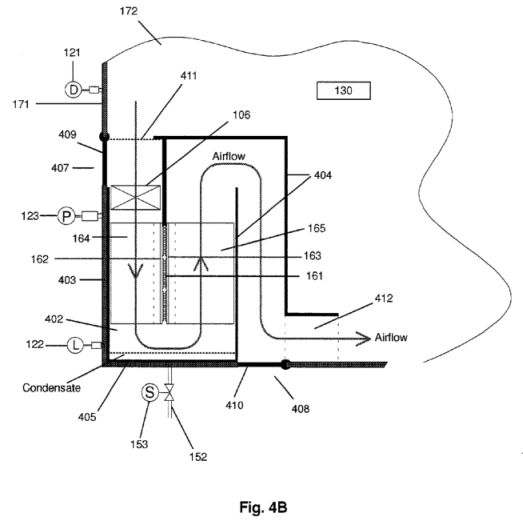

FIG. 4B shows a side detail view of the RECU of FIG. 4A in normal operation;

FIG. 4C shows a side detail view of the RECU of FIG. 4A, in defrost mode;

FIG. 5 shows a schematic view of the control devices of one embodiment of the present invention;

FIG. 6 shows a flow diagram depicting the RECU control flow, for both the dehumidification and the defrost operations according to one embodiment of the present invention;

FIG. 7 shows the RECU of FIG. 3A, using a wick to remove condensate.

FIG. 8A shows an RECU using a vapor compression cycle heat pump according to one embodiment of the present invention;

FIG. 8B shows the operation of the embodiment of FIG. 8A during normal operation;

FIG. 8C shows the operation of the embodiment of FIG. 8A during defrost mode;

FIG. 8D shows a control schematic for the embodiment of FIGS. 8A through 8C.

Scientists Have Created a Device That Sucks Water Out of Thin Air, Even in the Desert:

Official documentation: 👉 Water Liberty Guide was born

✔ It’s the only proven, EXCLUSIVE step-by-step guide showing you EXACTLY how to create your own “home oasis” TODAY…and how to survive any tough century long drought…
✔ It was providing a steady, robust supply of fresh, pure water ON DEMAND…

Related document: Create Safe Drinking Water

DETAILED DESCRIPTION OF THE INVENTION

FIG. 1A illustrates the environment in which the recuperative environmental conditioning unit (RECU) of the present invention functions. The environment comprises an enclosure 171, containing an electronics compartment 172. Enclosure 171 is substantially sealed against ingress of ambient air, however a hermetic seal is not required. Compartment 172 may contain electronic modules 192 cooled by forced air, or electronic modules 181 in thermal contact with an evaporative cooler 182, or both as shown. Forced air cooling is accomplished by using one or more air moving devices 193 to create a cooling airflow over the modules 192 and board 191, thereby removing heat from modules 192 and board 191. The heated air then passes through an evaporative cooler 194, transferring heat from the air to the cooling fluid within the evaporative cooler 194. The cooled air circulates back through the air moving device 193, then back over the modules 192 and board 191. Evaporative cooler 182, in thermal contact with module 181, transfers heat from module 181 to the cooling fluid within the evaporative cooler 182. The evaporative coolers 182 and 194 are as known in the art, each having fluid connections to and from an external refrigeration system.

FIG. 1A further illustrates the design and placement of RECU 100 within the electronics environment, per one embodiment of the present invention. As shown in FIG. 1A, RECU 100 comprises a closed loop conduit 102, extending below the enclosure, and an airflow baffle 101 extending upwards into the enclosure. As illustrated by the arrow indicating the flow of air through conduit 102, airflow baffle 101 causes air exiting conduit 102 to circulate through compartment 172 prior to reentering conduit 102.

FIG. 1B provides a detailed view of the embodiment of FIG. 1A during normal operation. Conduit 102 is comprised of several sections: an inlet port 111, a conduit inlet side 103, a conduit sump 105, a conduit outlet side 104, and an outlet port 112. The inlet port 111 is in airflow communication with the electronics compartment 172, and also with the conduit inlet side 103. The conduit inlet side 103 is further in airflow communication with conduit sump 105, sump 105 also being in airflow communication with conduit outlet side 104. Conduit outlet side 104 is further in airflow communication with outlet port 112, outlet port 112 also being in airflow communication with electronics compartment 172. A closed loop airflow is therefore provided from compartment 172, through inlet port 111, inlet side 103, sump 105, outlet side 104, outlet port 112, and finally back to compartment 172.

Air circulation through the closed loop conduit 102 is provided by air moving device 106. In the embodiment of FIG. 1B, air moving device 106 is placed within the conduit inlet side 103, between inlet port 111 and normally cold heat exchanger 162. Alternatively, air moving device 106 could be placed within the conduit outlet side 104.

In the embodiment of FIG. 1B, airflow baffle 101 performs two functions. As previously noted, the portion of baffle 101 extending into compartment 172 causes air exiting conduit 102 through outlet port 112, to circulate through compartment 172 prior to reentering conduit 102 through inlet port 111. In addition, the portion of baffle 101 extending inside the conduit (i.e. between heat pump 161 and ports 111 and 112) extends from the front to the rear wall of the conduit 102 of FIG. 1B, as shown in FIG. 2C. Baffle 101 may be sealed or bonded to the front and rear walls of conduit 102, or may merely be in contact with the front and rear walls of conduit 102, thus preventing airflow communication between the inlet side 103 and outlet side 104, in the space above heat pump 161. Baffle 101 therefore prevents an airflow short-circuit, insuring that air entering the inlet port flows through the length of inlet side 103, through sump 105, through the length of outlet side 104, prior to exiting the conduit through outlet port 112.

Two additional features are shown near each port 111 and 112. Inlet door 109 and ambient inlet vent 107 are disposed near inlet port 111 and inlet side 103. Outlet door 110 and ambient outlet vent 108 are disposed near outlet port 112 and outlet side 104. The purpose of these features will be fully described in the discussion of defrost mode. During normal operation, inlet door 109 is in the position shown in FIG. 1B, sealing off ambient inlet vent 107. In analogous fashion, outlet door 110 is in the position shown in FIG. 1B during normal operation, sealing off ambient outlet vent 108.

In preferred embodiments, heat pump 161 is a thermoelectric device. Thermoelectric heat pump 161 is placed within conduit 102, as shown in FIG. 1B. In the alternative, the heat pump is a vapor compression cycle heat pump, as discussed below and illustrated in FIGS. 8A through 8D. Power is supplied to the heat pump through any convenient means, such as the electronics complex within enclosure 171, or any convenient external source. During normal operation, the heat pump 161 causes heat to flow from the normally cold element 162 to the normally hot element 163. The normally cold element 162 is in thermal contact with the normally cold heat exchanger 164, and the normally hot element 163 is in thermal contact with the normally hot heat exchanger 165. FIGS. 2A through 2C provide additional details of the thermoelectric heat pump 161. As shown in FIG. 2A, heat pump 161, elements 162 and 163, and heat exchangers 164 and 165 extend substantially but not completely from the front to the back wall of conduit 102. In addition, the normally cold heat exchanger 164 extends substantially but not completely to the wall of conduit inlet side 103. In analogous fashion, the normally hot heat exchanger 165 extends substantially but not completely to the wall of conduit outlet side 104. As a result, there is limited thermal contact between any portion of conduit 102 and heat pump 161, elements 162 or 163, or heat sinks 164 or 165.

Mechanical support for heat pump 161 may be provided by a seal or other mechanism connecting heat pump 161 and/or elements 162 and 163 to the wall of conduit 102. In preferred embodiments, the mechanical support limits thermal conduction between conduit 102 and the heat pump 161 and its elements 162 and 163. Also, in preferred embodiments, a mechanical support such as a seal provides additional airflow isolation of the conduit inlet side from the conduit outlet side, along the length of heat pump 161. One possible embodiment is illustrated in FIGS. 2A through 2C, showing rail 115 connecting to the front and back walls of conduit 102. As shown, rail 115 provides mechanical support for the sides and some portion of the bottom of heat pump 161. In preferred embodiments, rail 115 simplifies field servicing by allowing easy insertion and removal of heat pump 161.

As shown in FIGS. 2A and 2B, the normally cold heat exchanger 164 is in thermal contact with the air within conduit inlet side 103, however heat exchanger 164 is not in direct thermal contact with the walls of conduit inlet side 103. Similarly, the normally hot heat exchanger 165 is in thermal contact with the air within conduit outlet side 104, however heat exchanger 165 is not in direct thermal contact with the walls of conduit outlet side 104. During normal operation, therefore, heat pump 161 causes heat to flow from the air within conduit inlet side 103 to normally cold heat exchanger 164, to normally cold element 162, through heat pump 161, to normally hot element 163, to normally hot heat exchanger 165, and finally to the air within conduit outlet side 104. Through this process, the air entering conduit 102 is cooled as it passes through inlet side 103, and is heated as it passes through outlet side 104.

In preferred embodiments, the normally hot heat exchanger 165 is designed such that it provides greater heat transfer than the normally cold heat exchanger 164. As a byproduct of pumping heat from the normally cold element 162 to the normally hot element 163, heat pump 161 creates some quantity of waste heat (i.e. joule heating). As a result, heat exchanger 165 should be designed such that it provides heat transfer capabilities sufficient to transfer to the air within the outlet side a quantity of heat equal to the heat which is removed from the air within the inlet side plus the waste heat which is generated by the heat pump 161. While optional, this design consideration becomes increasingly important as the duty cycle of RECU 100 increases, such as when enclosure 171 is poorly sealed against entry of ambient air. The embodiment illustrated in FIGS. 2A and 2B displays this feature: normally hot heat exchanger 165 is designed for greater thermal transfer than normally cold heat exchanger 164.

FIG. 1B illustrates several control features, to be discussed in detail below. These control features include sensing devices (dew point sensor 121, liquid level sensor 122, pressure sensor 123), a controller 130, and solenoid valve 153.
